1.Tubular UHT (Full-auto control) 2.Fruit juice 3.Pulp containing ≤ 1mm particles, 28 Brix pH ≤3.8 4.60℃→95-105℃(30S)→60℃ 5.6,000 L/h
|

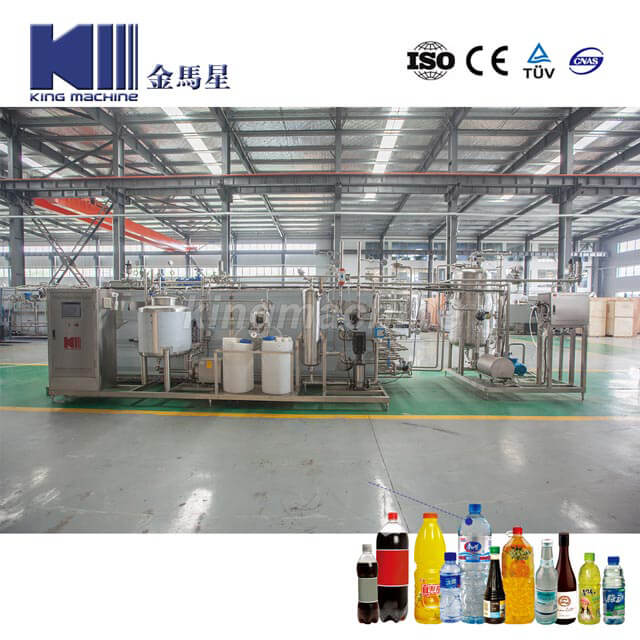

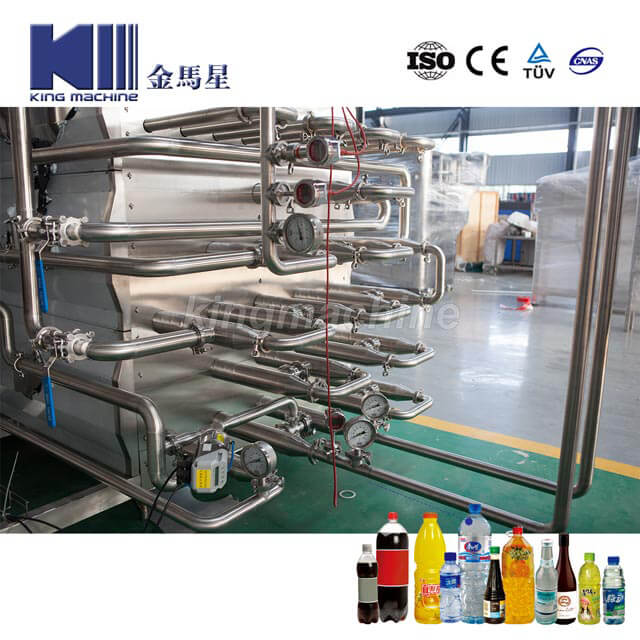

Tubular UHT (Full-auto control) |
|||
|
Application product |
Fruit juice (Pulp containing ≤ 1mm particles, 28 Brix pH ≤3.8 ) |
||
|
Technical & Utility |
|||
|
Temperature |
60℃→95-105℃(30S)→60℃ |
||
|
Flow rate |
6,000 L/h |
||
|
Steam pressure |
≥ 4.0 bar |
Steam consumption |
420 kg/h |
|
Pure water flow |
6,000 L/h (Clean standby) |
Compressed air |
≥ 6 bar |
|
Tower water flow |
30,000 L/h (≤32℃) |
Electric power |
10.2 kw |
